C50 series top configuration diaphragm vacuum pump

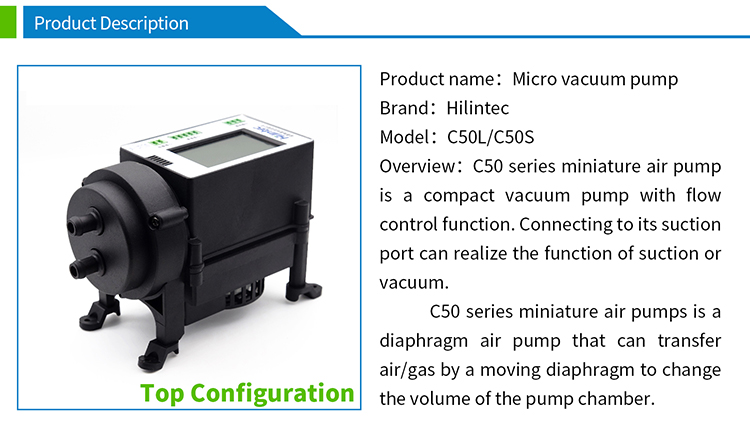

 The C50 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming.
 The main application areas include: gas analysis, environmental testing, laser equipment, biochemical medicine,lab equipment, etc.

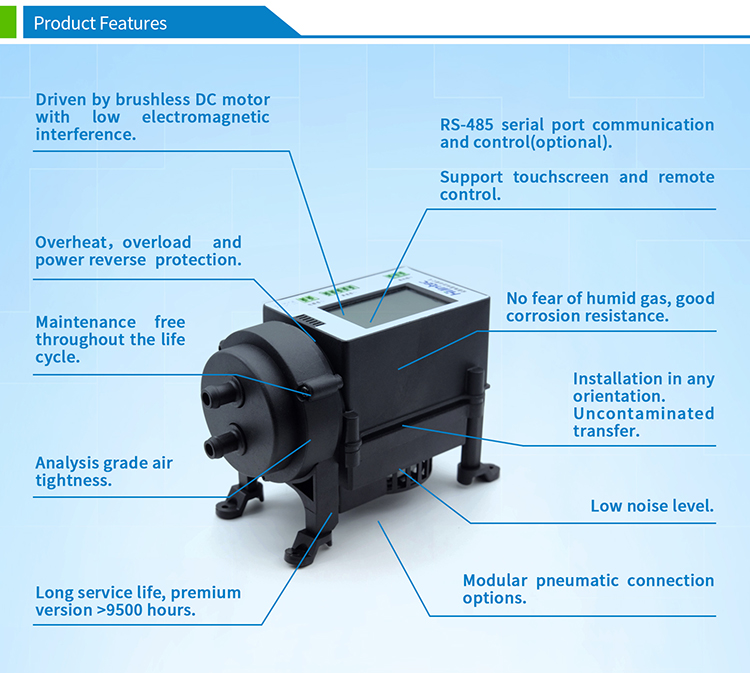

 It is especially suitable for scenarios where installation space is not large, large flow or high vacuum is required, and the gas exhaust is smooth. The pump is equipped with LCD display, touch screen control, speed control and communication interface, remote control function and  RS-485 communication function, with high reliability and a peak flow of 22L/min.

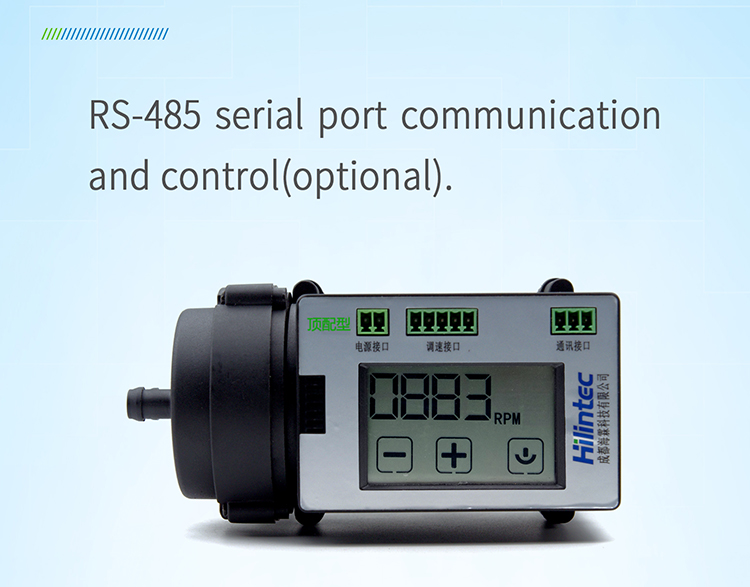

■Equipped with touch LCD screen, speed control signal port

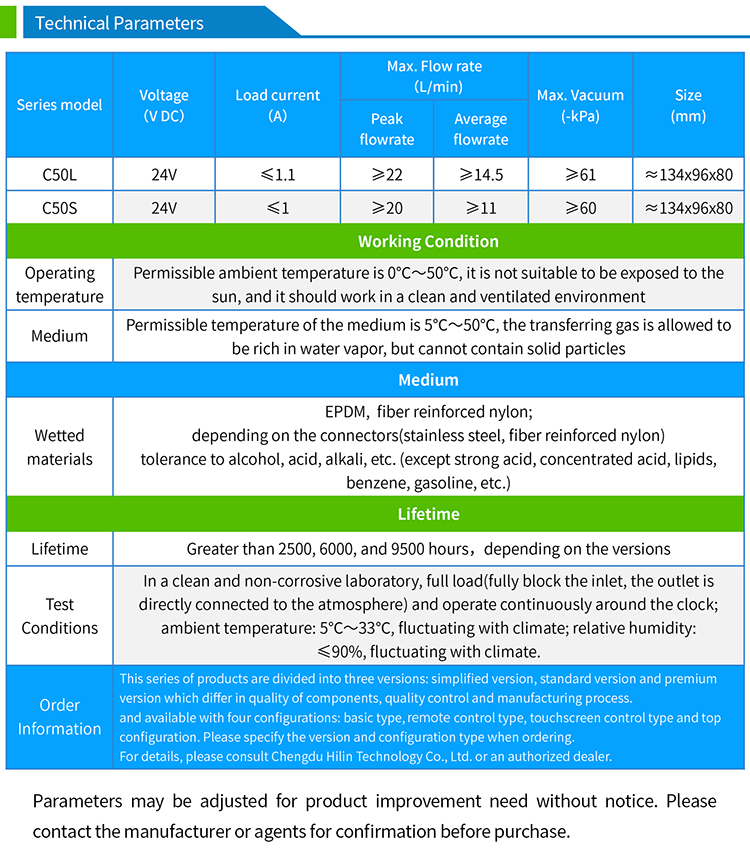

■No-load average flow: 11/min~14.5L/min
■No-load peak flow rate: 20L/min~22L/min
■Relative vacuum: -60kPa~-61kPa
■Overall life: premium version>9500hrs
