D50 series remote control dual-purpose diaphragm air pump
The D50 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, lab equipment, etc.

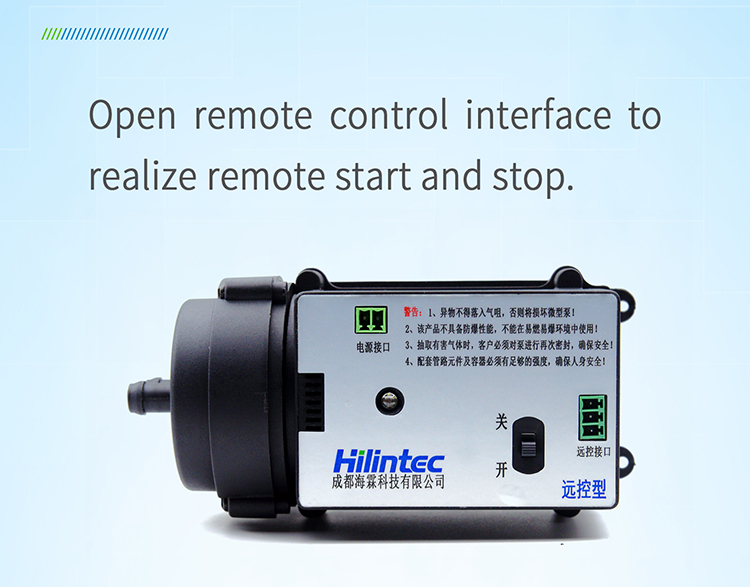

It is especially suitable for scenarios where installation space is not large, requiring large flow and there is resistance in discharging gas. The pump is equipped with a remote control interface, which can realize remote control with high reliability and a peak flow rate of 15L/min.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, lab equipment, etc.
It is especially suitable for scenarios where installation space is not large, requiring large flow and there is resistance in discharging gas. The pump is equipped with a remote control interface, which can realize remote control with high reliability and a peak flow rate of 15L/min.

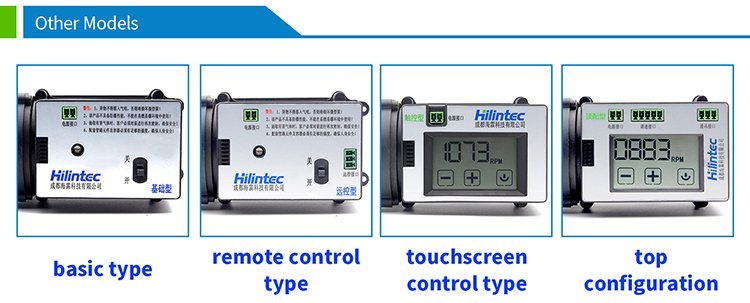

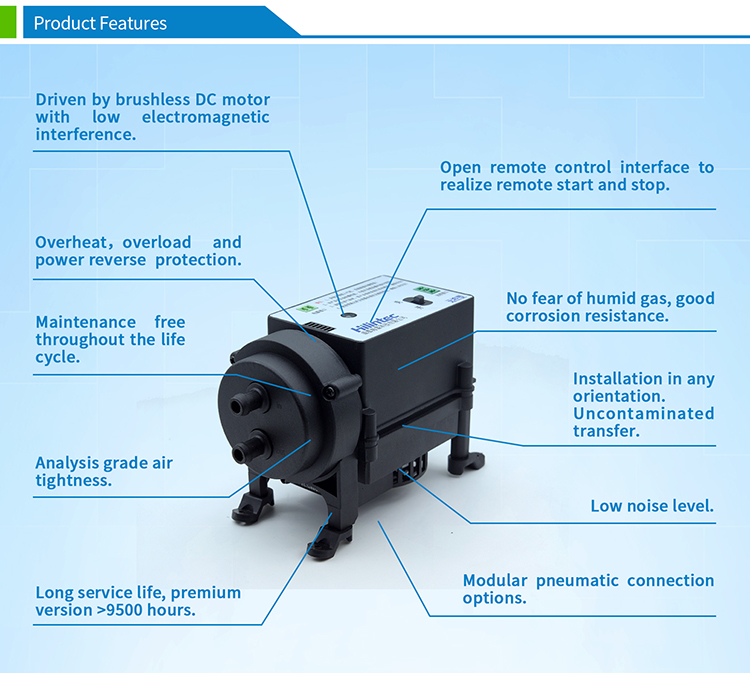

■Equipped with start-stop control signal port and replaceable pneumatic connector
■No-load average flow: 6.8/min~15L/min
■Maximum output pressure: 85kPa~120kPa
■Relative vacuum: -45kPa~-62kPa
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D50 series remote control dual-purpose diaphragm air pump Brochure
