C26 Series Knob Speed Controllable Diaphragm Vacuum Pump

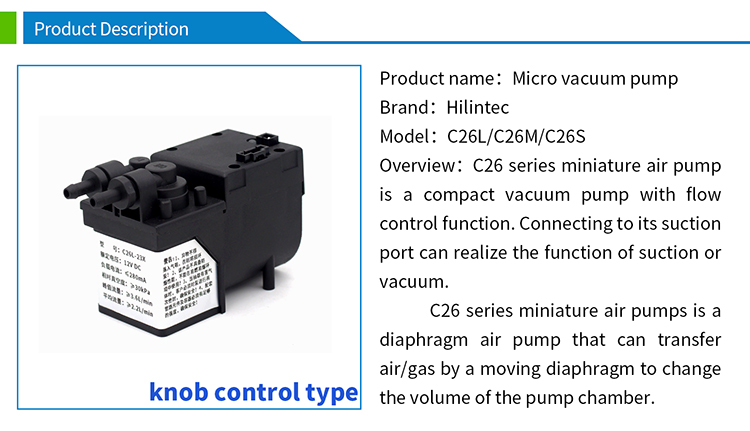

The C26 series miniature air pump is a compact vacuum vacuum pump with integrated speed and flow control function. The suction port connected to it can achieve the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 1～4L/min and unobstructed exhaust.

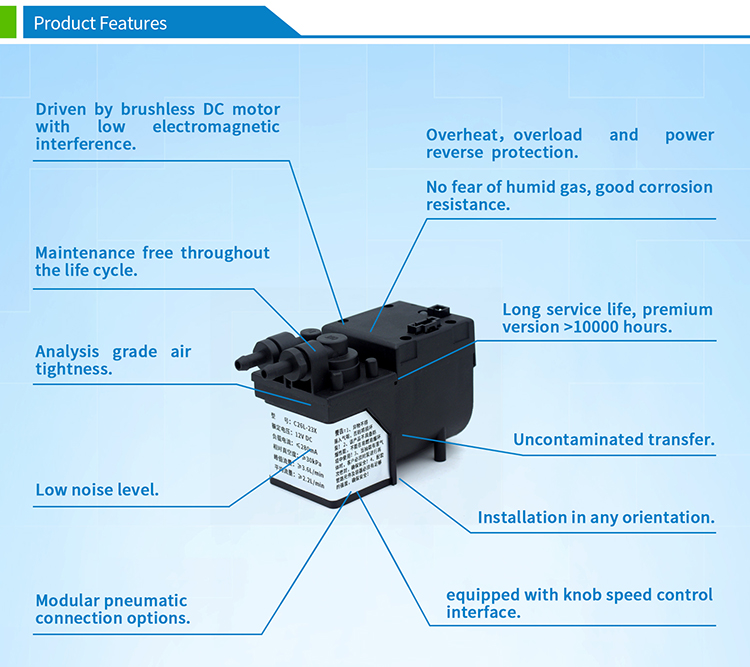

This product model, with good air tightness and high reliability, is equipped with working status indicator

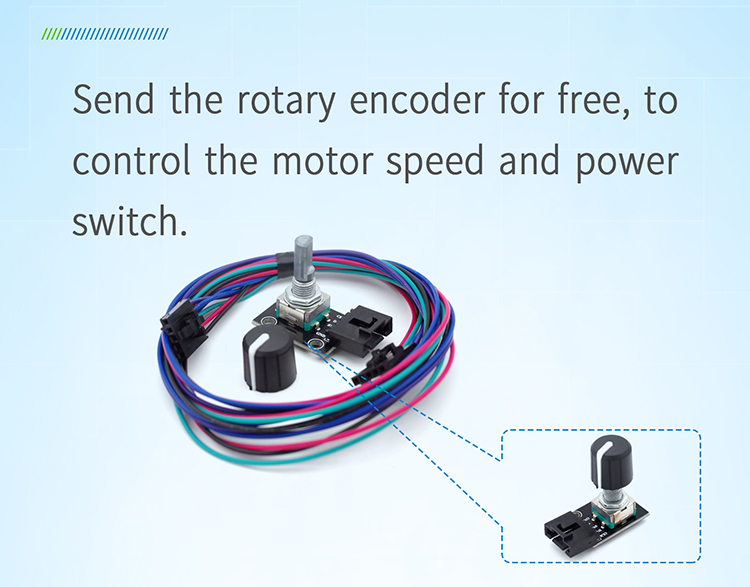

and knob speed control interface and a rotary encoder is provided for free..p
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 1～4L/min and unobstructed exhaust.
This product model, with good air tightness and high reliability, is equipped with working status indicator
and knob speed control interface and a rotary encoder is provided for free..p

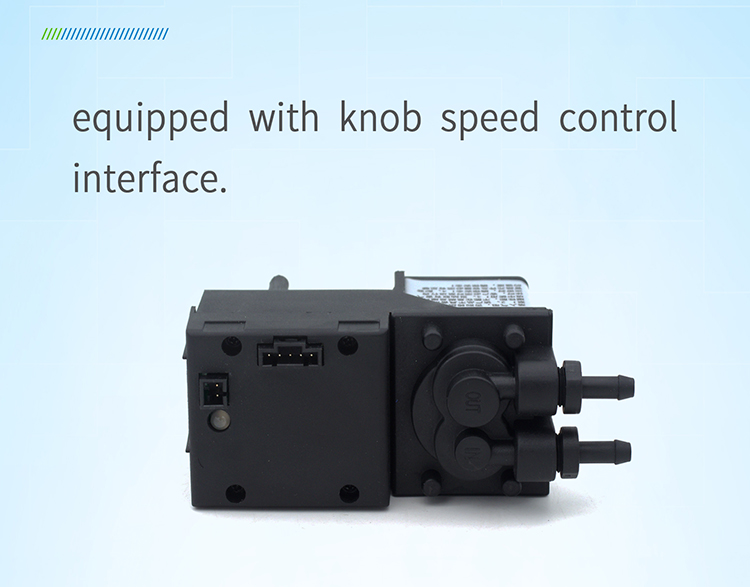

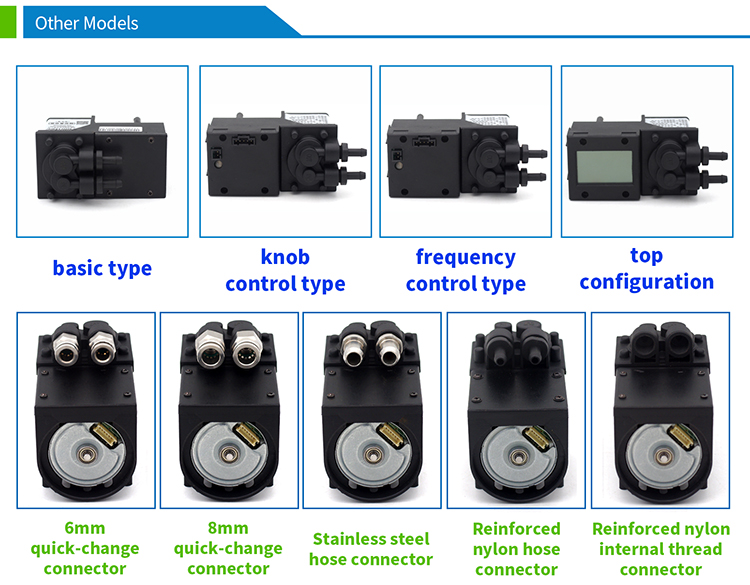

■Equipped with speed control knob and replaceable pneumatic connector

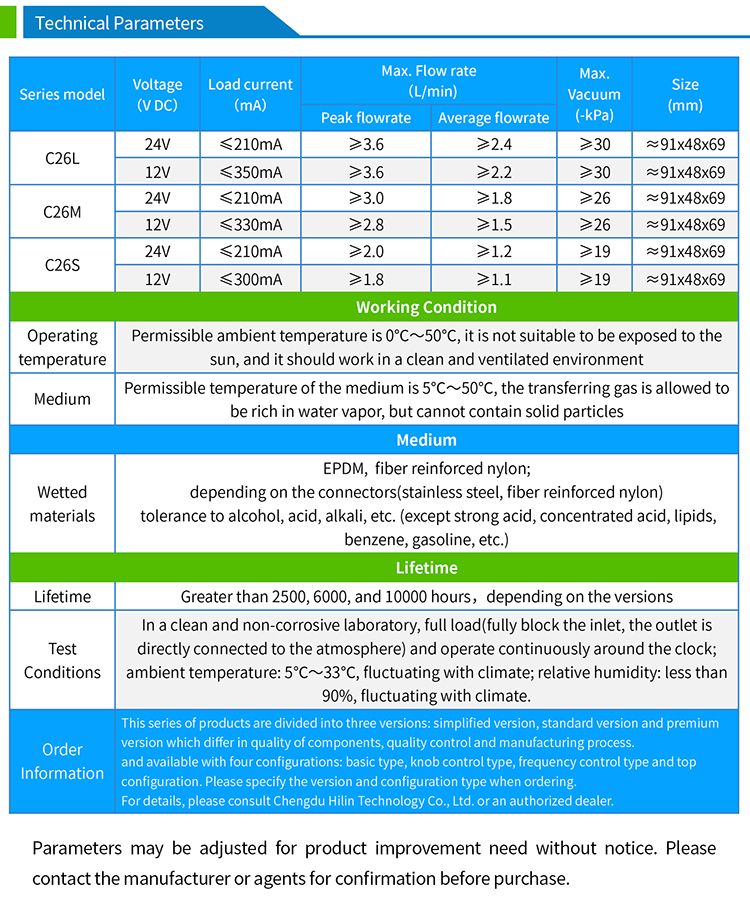

■No-load average flow: 1.1/min~2.4L/min
■No-load peak flow: 1.8L/min~3.6L/min
■Overall life: premium version>10000h
��ť����.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob0.jpg)
knob.jpg)
.jpg)
.jpg)
knob.jpg)
Download C26 Series Knob Speed Controllable Diaphragm Vacuum Pump Brochure
