C30 Series Knob Speed Control Type Diaphragm Vacuum Pump

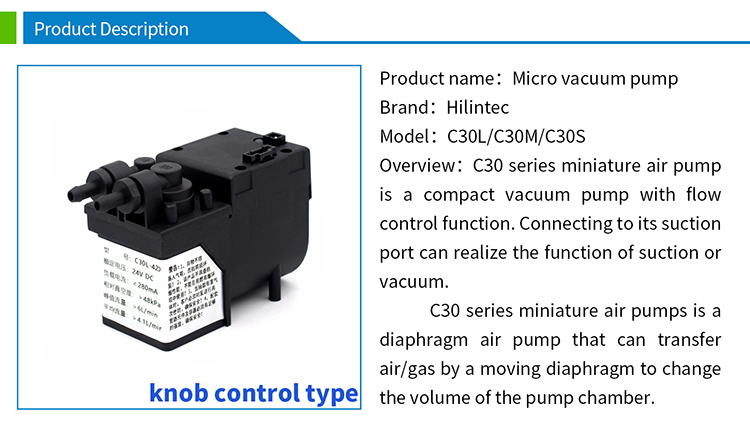

The C30 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. Connecting to its suction port can realize the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental testing, laser equipment, biochemical medicine and lab equipment, etc.
Especially suitable for: gas collection or analysis fields with a flow rate of 4-6L/min and unobstructed exhaust. This model product, with good air tightness and high reliability, is equipped with working condition indicator light and knob speed control interface and a rotary encoder is provided for free.
The main application areas include: gas analysis, environmental testing, laser equipment, biochemical medicine and lab equipment, etc.
Especially suitable for: gas collection or analysis fields with a flow rate of 4-6L/min and unobstructed exhaust. This model product, with good air tightness and high reliability, is equipped with working condition indicator light and knob speed control interface and a rotary encoder is provided for free.

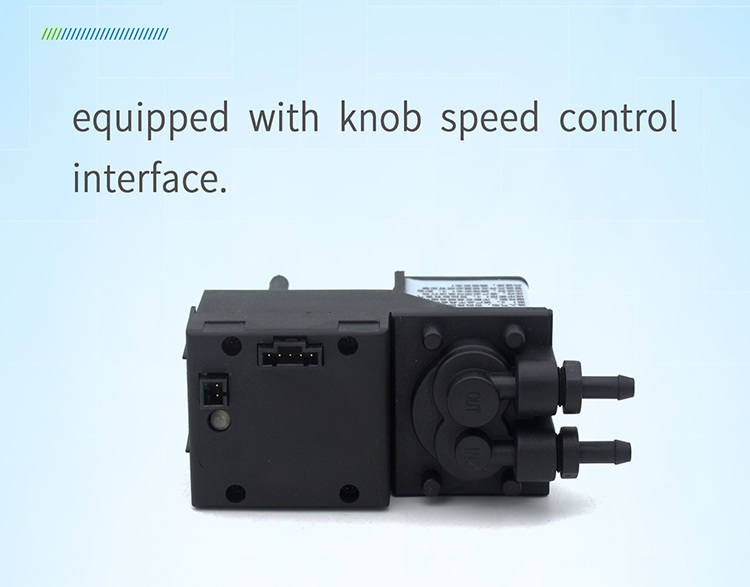

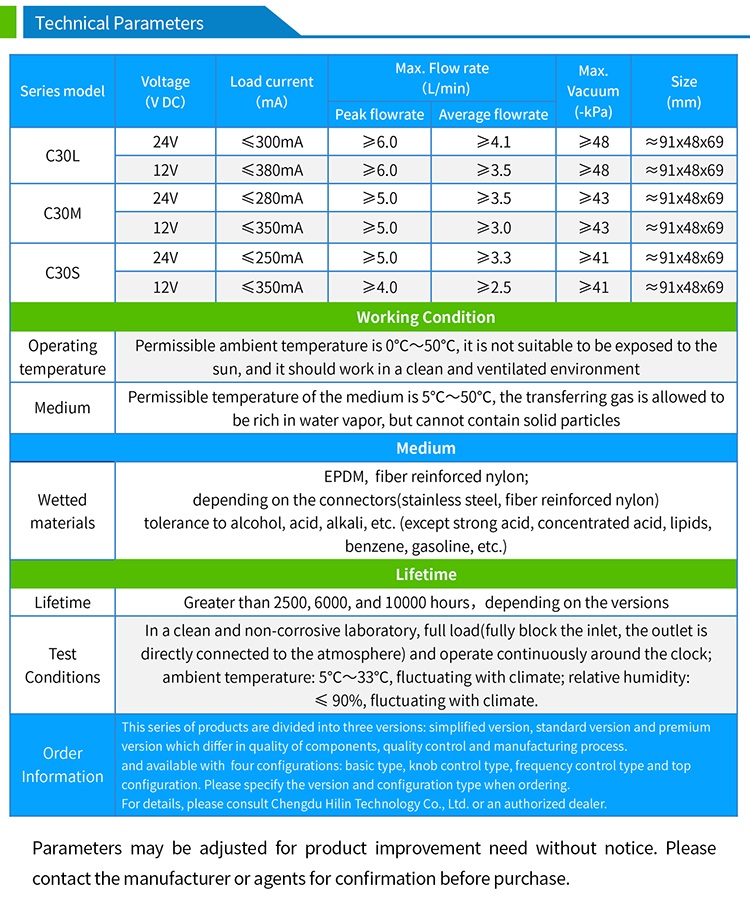

■Equipped with speed control knob and exchangeable pneumatic connector
■No-load average flow: 2.5L/min~4.1L/min
■No-load peak flow rate: 4L/min~6L/min
■Relative vacuum: -41kPa~-48kPa
■Overall life: premium versi
.jpg)
knob.jpg)
.jpg)
.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download C30 Series Knob Speed Control Type Diaphragm Vacuum Pump Brochure
